App_Resources

The App_Resources folder contains platform-specific resources of the application (icons, configuration files, native code, etc.). An application that supports both Android and iOS would therefore contain a subfolder for each platform.

This page serves as a quick reference to understand how most settings in App_Resources affect the behavior and the look of a NativeScript app.

Android specific resources ​

On Android, many aspects of the default styling is controlled through various settings within the App_Resources folder.

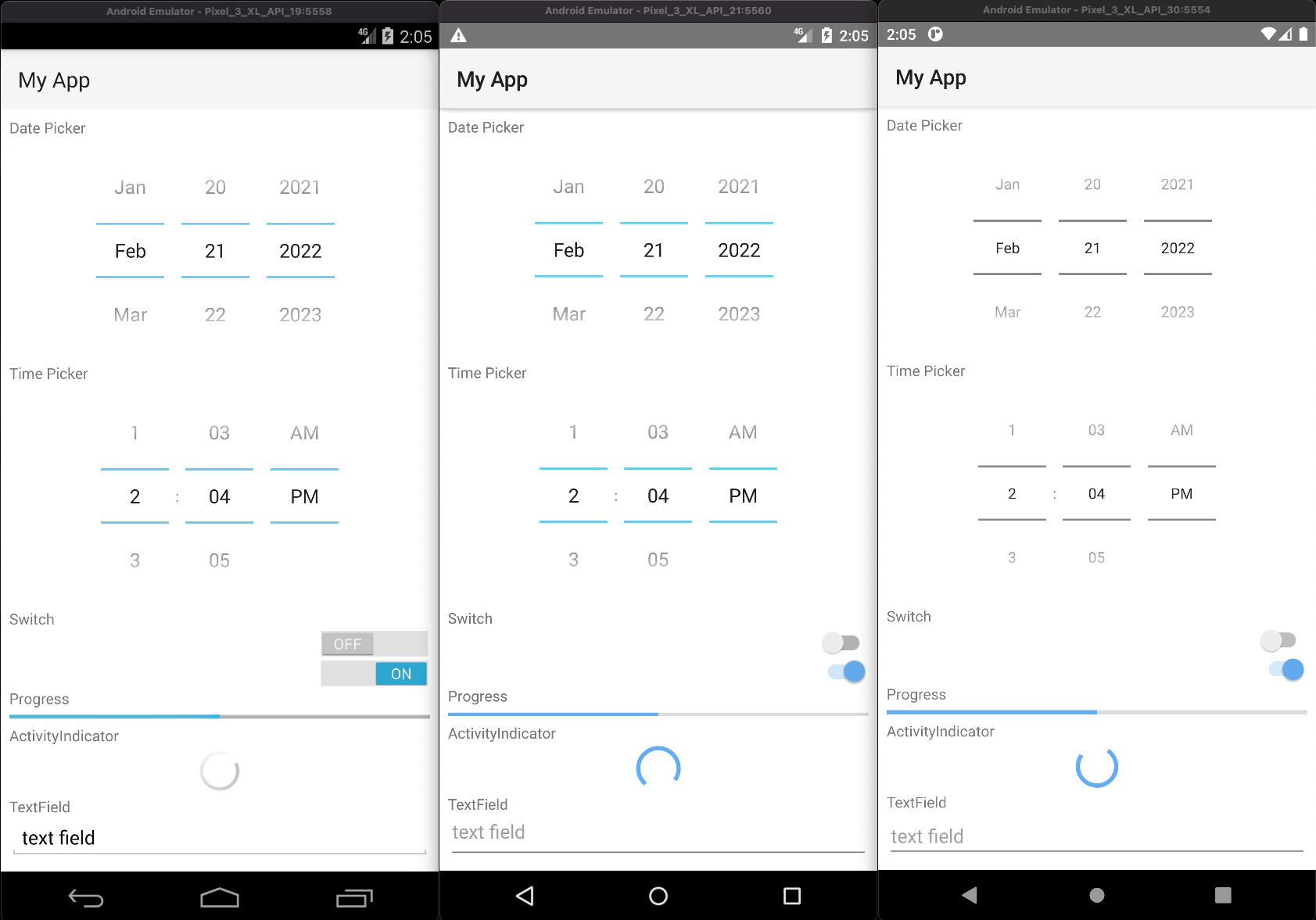

Here we are showing the default look of a few elements (no custom styling applied) using the default values provided in App_Resources:

App_Resources/
├─ Android/
│  └─ src/main/res/
│     ├─ values/      # Default Values
│     ├─ values-v21/  # Values for API 21+
│     └─ values-v29/  # Values for API 29+
└─ ... more

Values can be overridden on specific API levels by making the changes in the corresponding directories.

Android app display name ​

• App_Resources/Android/src/main/res/values/strings.xml

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<resources>
  <string name="app_name">Your app name</string>
  <string name="title_activity_kimera">Your app name</string>
</resources>

Adding native code to an application ​

See Adding Java/Kotlin Code to an application

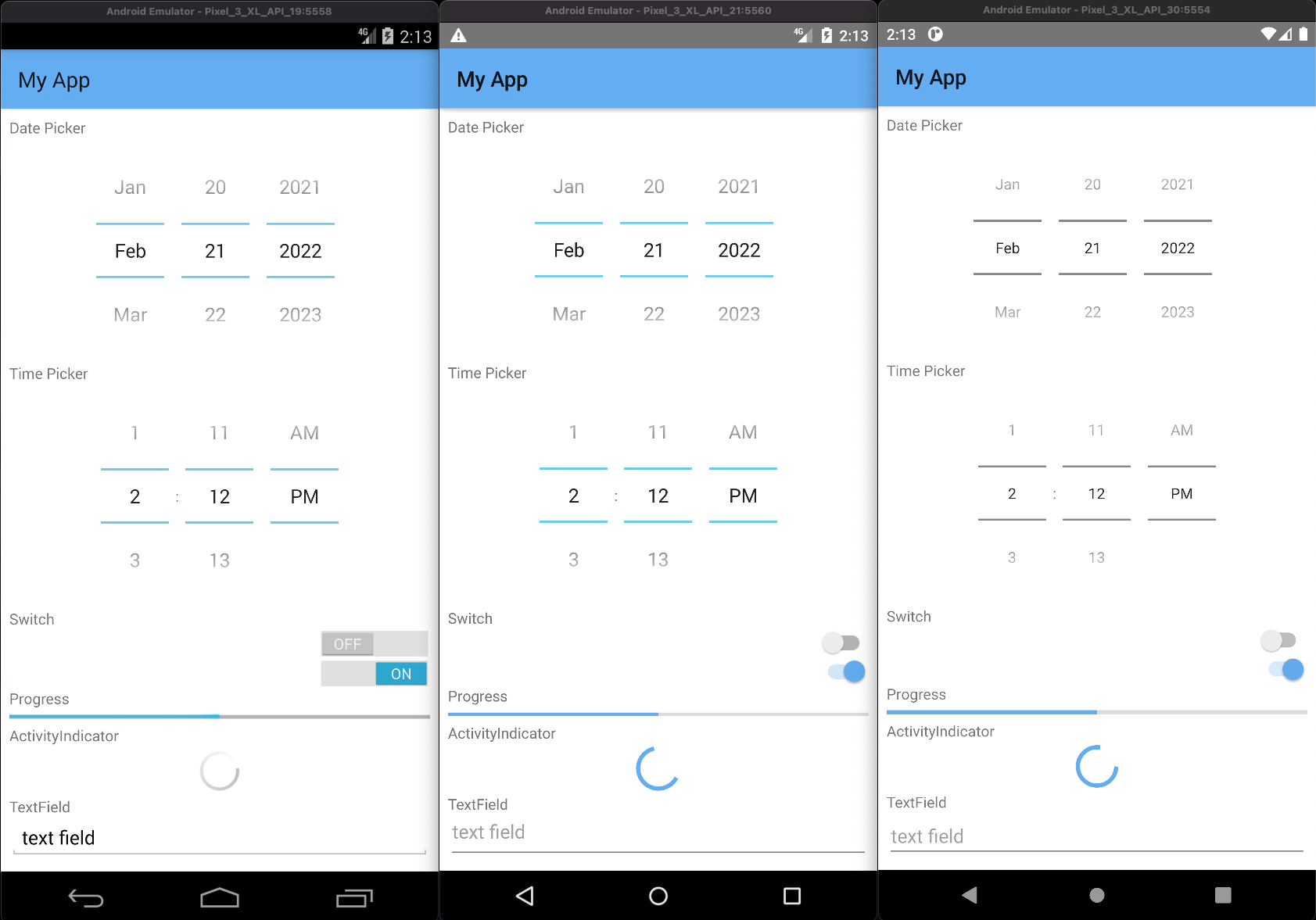

Setting the default color of the ActionBar ​

To change the default color fo the ActionBar, edit the ns_primary color inside App_Resources/Android/src/main/res/values/colors.xml:

<!-- The default color of the ActionBar -->
<color name="ns_primary">#65adf1</color>

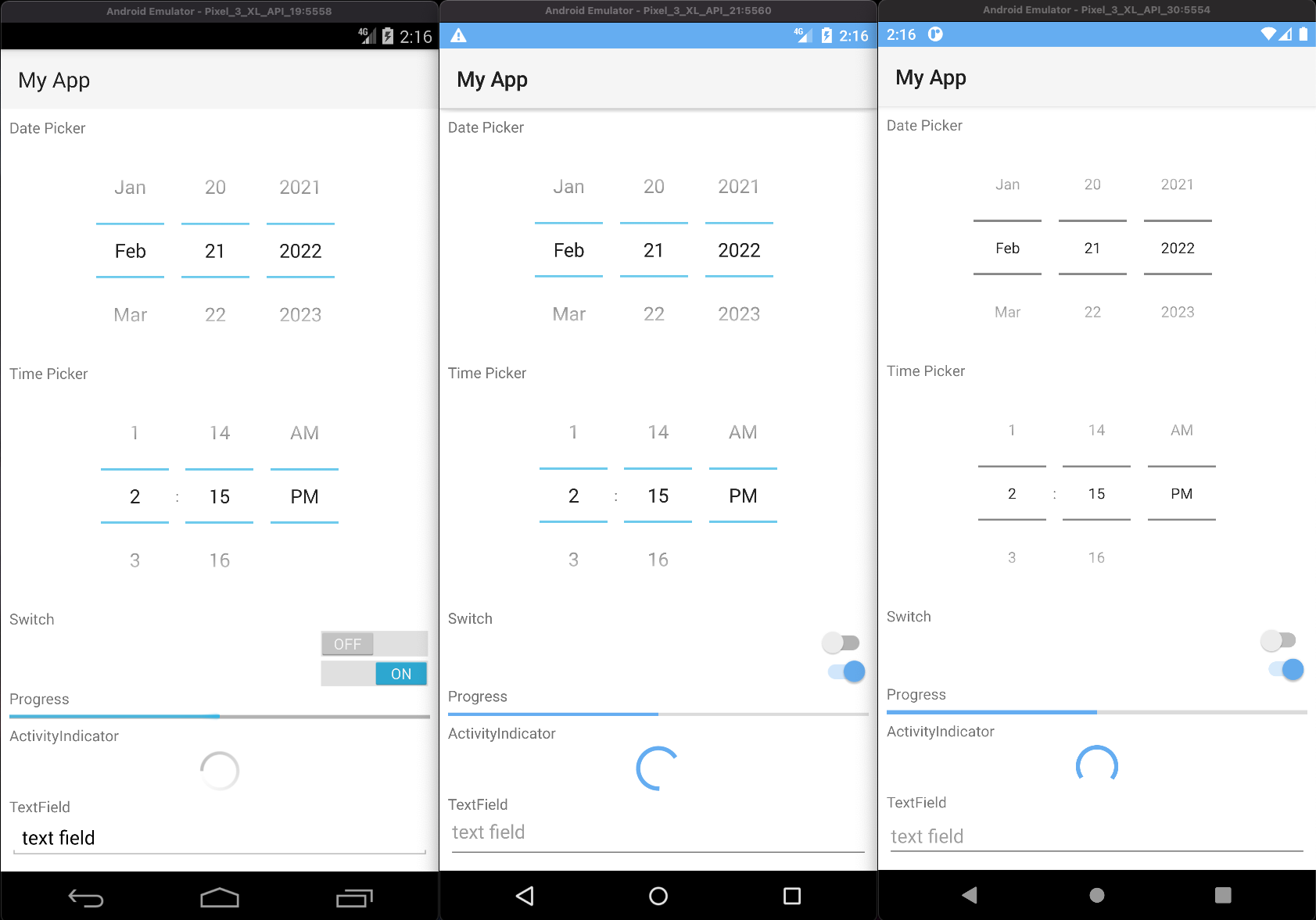

Setting the default color of the status bar ​

To change the default color of the status bar, edit the ns_primaryDark color inside App_Resources/Android/src/main/res/values/colors.xml:

<!-- (API21+) The color of the status bar and contextual app bars; this is normally a dark version of colorPrimary. -->
<color name="ns_primaryDark">#65adf1</color>

Setting the accent color ​

Various native elements have an accent color, which can be changed by setting the ns_accent color inside App_Resources/Android/src/main/res/values/colors.xml:

<!-- The color of UI controls such as check boxes, radio buttons, and edit text boxes. -->
<color name="ns_accent">#059669</color>

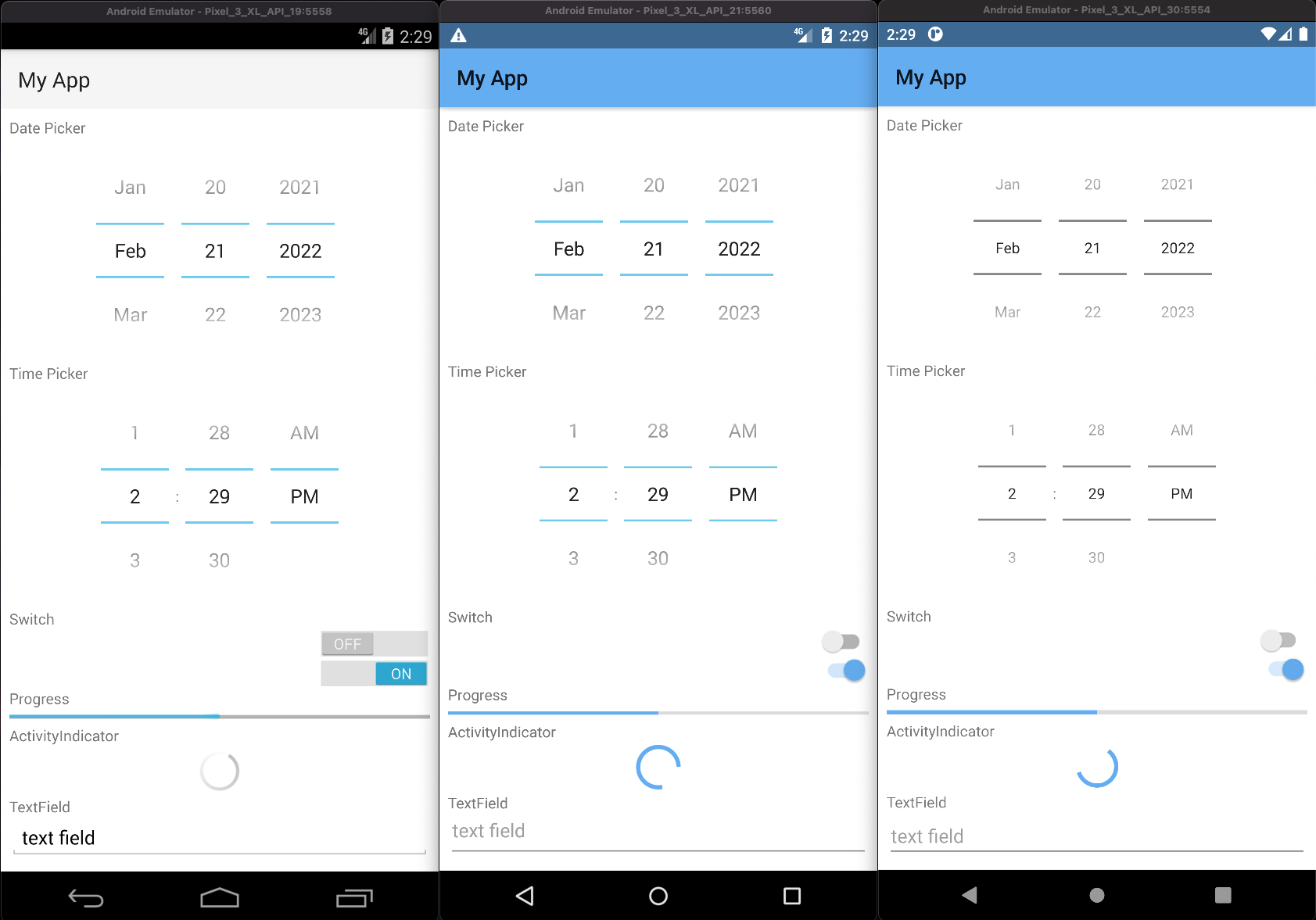

Showing the app under the status bar ​

The status bar can be made translucent and let the app flow underneath by uncommenting android:windowTranslucentStatus in AppThemeBase21 and android:paddingTop in NativeScriptToolBarStyle in App_Resources/Android/src/main/res/values-v21/styles.xml:

<!-- Application theme -->
<style name="AppThemeBase21" parent="AppThemeBase">
  <!-- Uncomment this to make the app show underneath the status bar -->
  <item name="android:windowTranslucentStatus">true</item>
<!-- ... -->
</style>

<!-- ... -->

<style name="NativeScriptToolbarStyle" parent="NativeScriptToolbarStyleBase">
  <item name="android:elevation">4dp</item>

  <!-- Add padding to the ActionBar - useful when android:windowTranslucentStatus is set to true -->
  <item name="android:paddingTop">24dp</item>
</style>

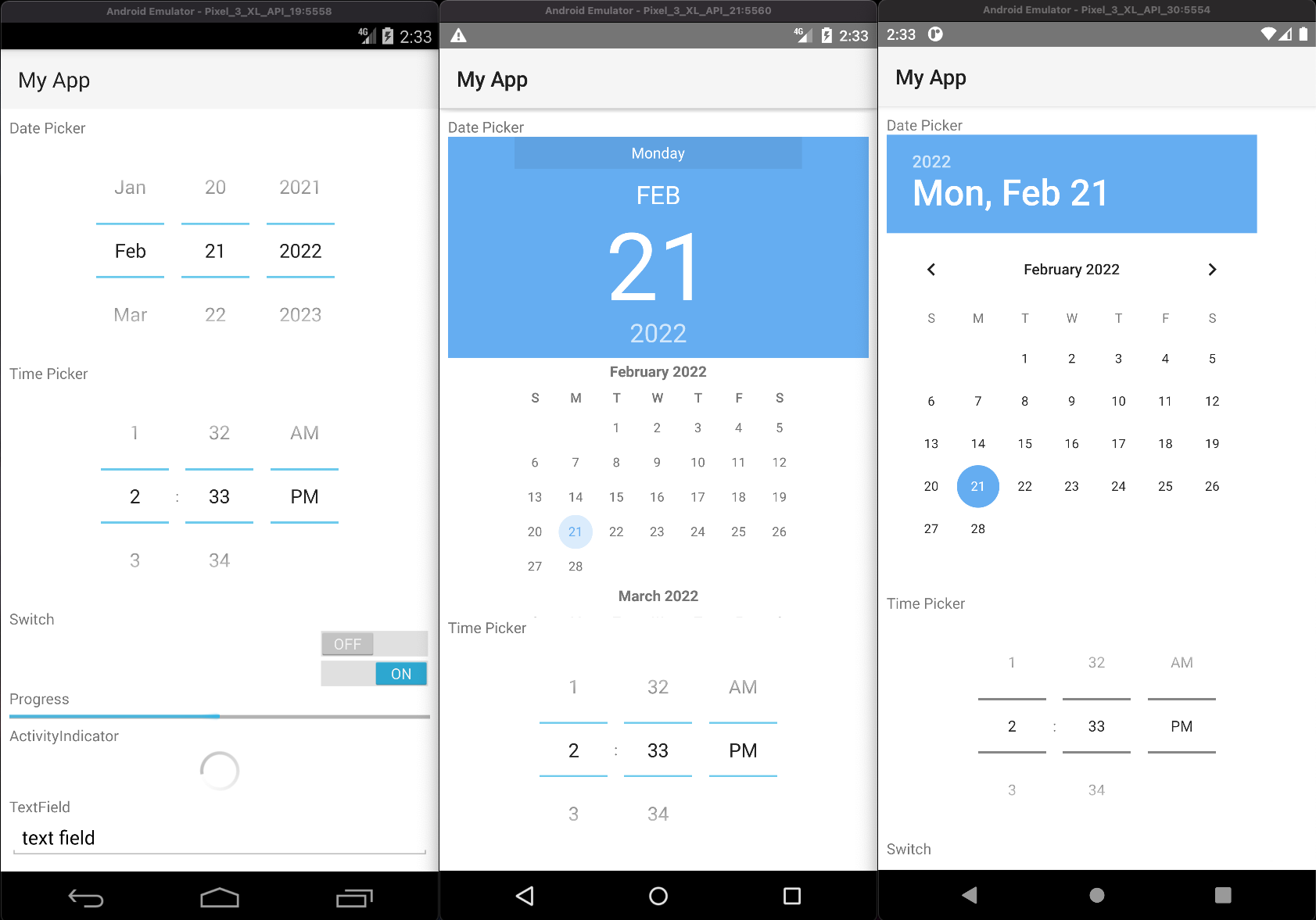

Changing the DatePicker to calendar mode ​

To change the mode of the DatePicker from the default spinner style, change android:datePickerMode in App_Resources/Android/src/main/res/values-v21/styles.xml:

<!-- Default style for DatePicker - in spinner mode -->
<style name="SpinnerDatePicker" parent="android:Widget.Material.Light.DatePicker">
  <!-- set the default mode for the date picker (supported values: spinner, calendar)  -->
  <item name="android:datePickerMode">calendar</item>
</style>

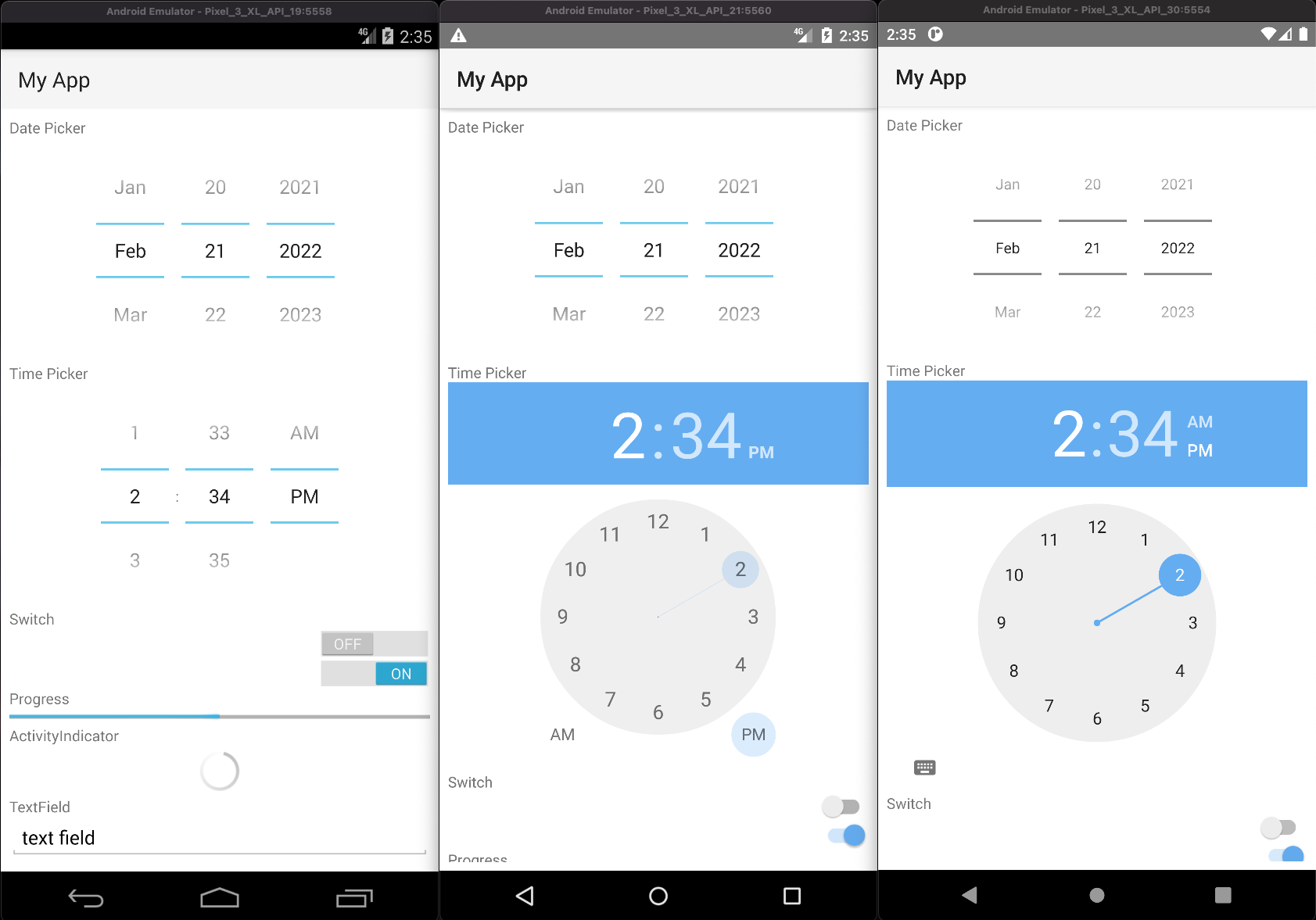

Changing the TimePicker to clock mode ​

To change the mode of the TimePicker from the default spinner style, change android:datePickerMode in App_Resources/Android/src/main/res/values-v21/styles.xml:

<!-- Default style for TimePicker - in spinner mode -->
<style name="SpinnerTimePicker" parent="android:Widget.Material.Light.TimePicker">
  <!-- set the default mode for the time picker (supported values: spinner, clock)  -->
  <item name="android:timePickerMode">clock</item>
</style>

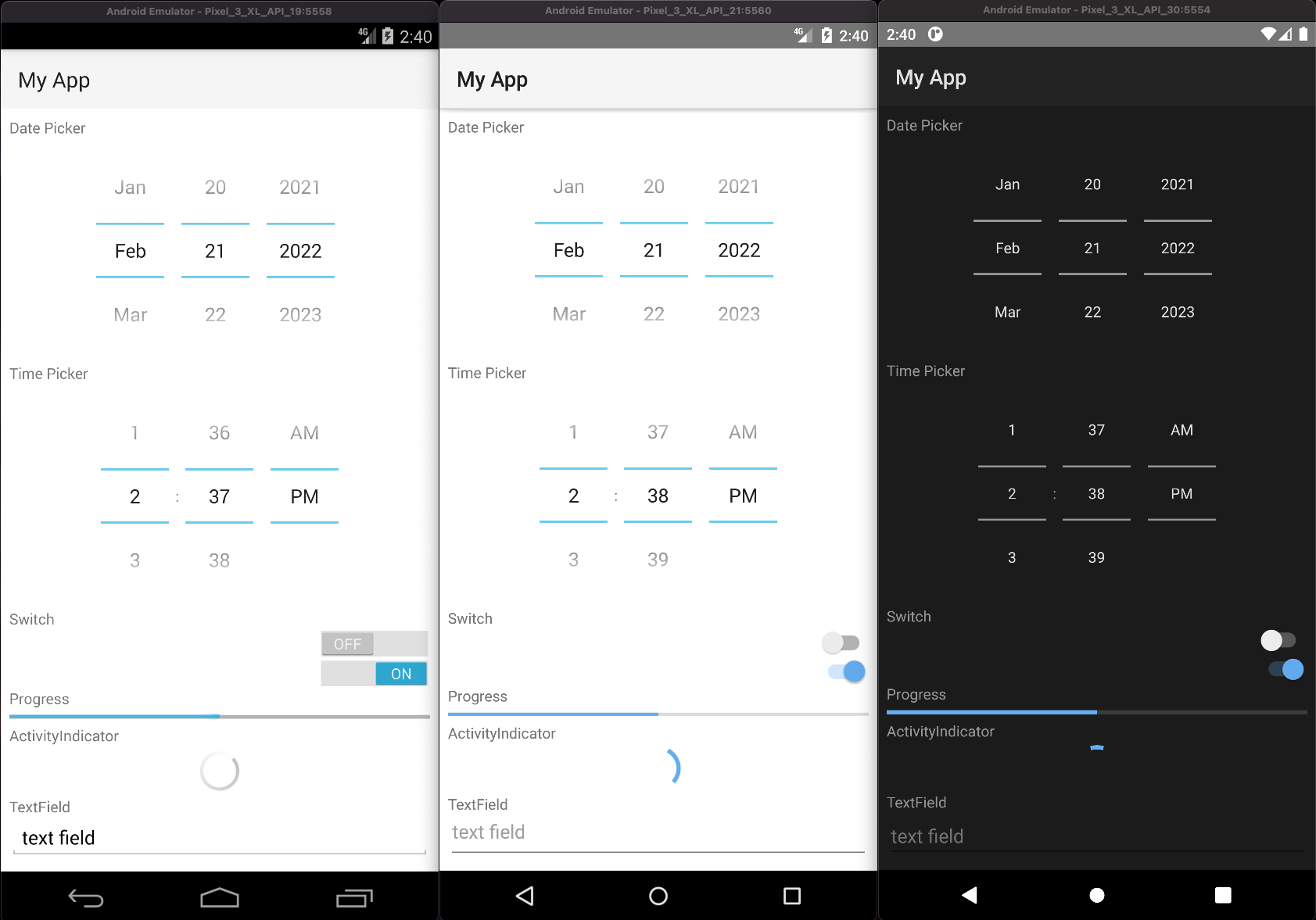

Enabling force Dark Mode ​

On API29+ apps can opt-in to a default Dark Mode when the system is set to use Dark Mode. This is turned off by default as it can lead to visual issues, since the automatic conversion may not display correctly in all cases.

To opt-in, change the android:forceDarkAllowed value to true in App_Resources/Android/src/main/res/values-v29/styles.xml:

<!--
  Disable forced dark mode on newer devices.
  Enabling this will make your app appear in dark-mode,
  but the way the app is converted may lead to visual issues
-->
<item name="android:forceDarkAllowed">true</item>

iOS specific resources ​

Most things on iOS are controlled directly through the app's template code however you can change the status bar style between dark (black text) or light (white text) by adding the following to your app's App_Resources/iOS/ Info.plist:

• Use white text on dark background:

<key>UIStatusBarStyle</key>
<string>UIStatusBarStyleLightContent</string>
<key>UIViewControllerBasedStatusBarAppearance</key>
<false/>

• Use black text on light background:

<key>UIStatusBarStyle</key>
<string>UIStatusBarStyleDarkContent</string>
<key>UIViewControllerBasedStatusBarAppearance</key>
<false/>

iOS app display name ​

<key>CFBundleDisplayName</key>
<string>Your app name</string>
<key>CFBundleName</key>
<string>Your app name</string>

Adding custom entitlements ​

You can add custom entitlements to the App_Resources/iOS/app.entitlements

For a list of available entitlements refer to Apple's Entitlements documentation

Adding ObjectiveC/Swift Code to an application ​

See Adding ObjectiveC/Swift Code to an application.
